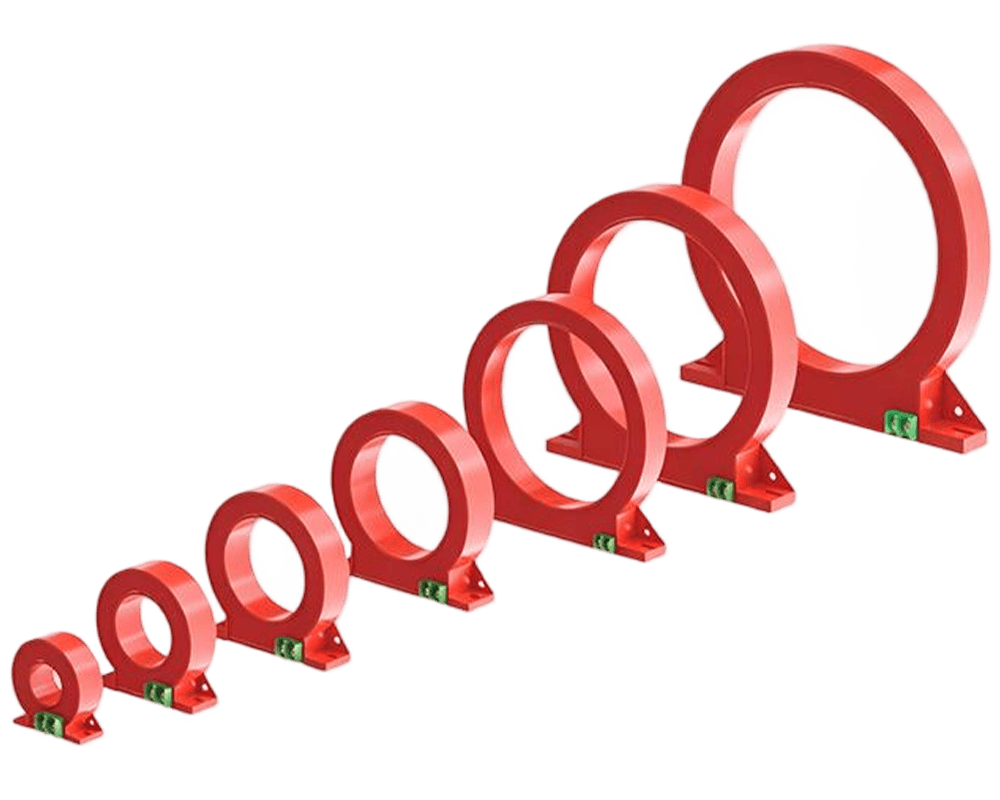

Circular Residual Current Transformer

Electrical Parameters
Working frequency	50~400Hz
Rated input	10mA~5A
Measuring range	10%In~130%In
Rated output	0-1V or 0-0.5mA
Ratio difference	≤+0.1%
Phase difference	≤+10 points
Dielectric strength	2.5KV/1mA/1min
Insulation resistance	DC500V/1000MΩ /min

Electrical Parameters

Working frequency

50~400Hz

Rated input

10mA~5A

Measuring range

10%In~130%In

Rated output

0-1V or 0-0.5mA

Ratio difference

≤+0.1%

Phase difference

≤+10 points

Dielectric strength

2.5KV/1mA/1min

Insulation resistance

DC500V/1000MΩ /min

Mechanical Parameters
Shell	ABS, Flame retardant grade 94-V0
Skeleton	PBT
Iron core	Nickel or nanocrystalline
Intermal structure	Environment friendly epoxy resin casting
Construction plan	Screw fixation
Working temperature	-12°C~+45°C
Ambient humidity	≤85%
Connection mode	Terminal type / shielded strand 1.5m

Mechanical Parameters

Shell

ABS, Flame retardant grade 94-V0

Skeleton

PBT

Iron core

Nickel or nanocrystalline

Intermal structure

Environment friendly epoxy resin casting

Construction plan

Screw fixation

Working temperature

-12°C~+45°C

Ambient humidity

≤85%

Connection mode

Terminal type / shielded strand 1.5m

Model and Specification	Rated Input (A)	Rated Output	Accuracy Class	Dimensions (mm)
Y-25	0~1A	0~1V (0.5mA)	0.1 0.2 0.5 1.0	25mm	56	60	21	48.5	M5
Y-45	45mm	79.5	83.5	24	66.5	M5
Y-65	65mm	99.5	104	24	86.5	M5
Y-80	80mm	113.5	119	26	101.5	M5
Y-100	100mm	135.5	141	26	114.5	M6
Y-150	150mm	189.5	196	27	171	M6
Y-200	200mm	239.5	246	30	221	M8

Model and Specification

Rated Input (A)

Rated Output

Accuracy Class

Dimensions (mm)

Y-25

0~1A

0~1V
(0.5mA)

0.1
0.2
0.5
1.0

25mm

48.5

Y-45

45mm

79.5

83.5

66.5

Y-65

65mm

99.5

104

86.5

Y-80

80mm

113.5

119

101.5

Y-100

100mm

135.5

141

114.5

Y-150

150mm

189.5

196

171

Y-200

200mm

239.5

246

221
