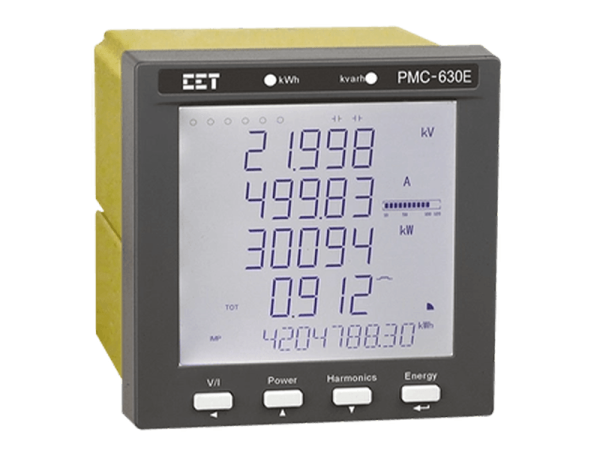

The PMC-630E Advanced Multifunction Ethernet Meter, based on the highly successful PMC-630 series, is CET’s latest offer for the low, medium and high voltage power/energy metering market. Housed in an industry-standard DIN form factor measuring only 96mmx96mmx125 mm, the PMC-630E’s compact size is perfectly suited for today’s space restricting installations and for applications that require Ethernet connectivity. The PMC-630E features 4 current inputs, quality construction with metal enclosure, multifunction and revenue-accurate measurements, transient detection with waveform recording capabilities, and an easy-to-read, back-lit LCD display, capable of displaying 3-phase measurements at once. The meter comes standard with 6 Digital Inputs for status monitoring or utility pulse counting and 3 Digital Outputs for control or alarming applications. The standard SOE Log records all setup changes, DI and Setpoint status changes, and DO operations in 1ms resolution. With the standard RS485 port and 10/100BaseT Ethernet port supporting DNP 3.0, Modbus RTU and Modbus TCP protocols, the PMC-630E becomes a vital component of an intelligent, multifunction monitoring solution for any Power and Energy Management systems.
